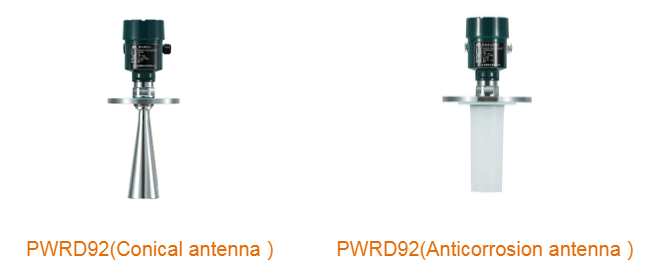

PWRD92 Radar Level Meter Transmitter
Application: mainly used in liquid level measurement of liquid storage tanks in petroleum, chemical, smelting, water and other industries.
Range: 30m/35m
Process temperature: -60~250℃
Process pressure: -0.1~4.0Mpa
Accuracy: ±2mm
Process connection: Thread/flange
Frequency: 26GHz
Signal output:
4~20mA/HART 24V DC 2-wire /4-wire system;
4~20mA/HART 220V AC 4-wire system；
RS485/Modbus
Explosion proof grade: Exia IIC T6 Ga;Exd IIC T6 Gb
Protection class: IP68
