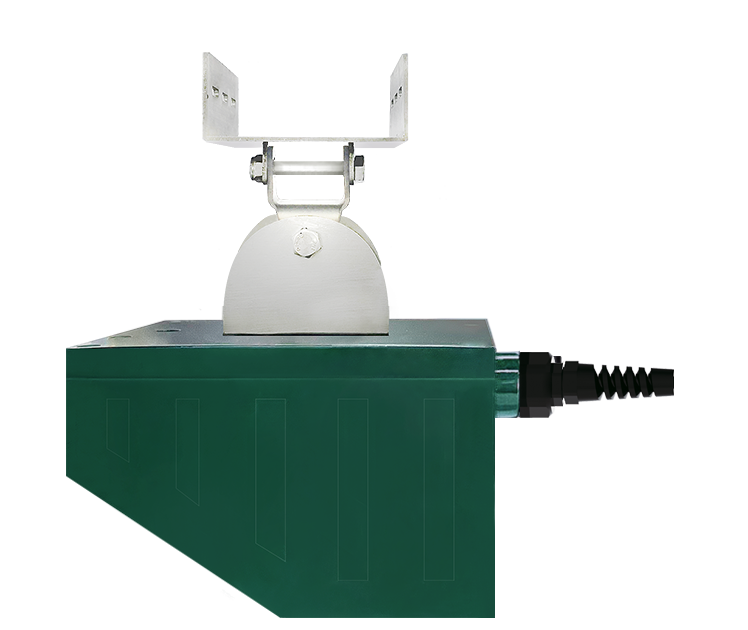

PWRV431(ABS)
Summary indicators
· power supply voltage: 5.5~30V DC
· power current: ≤60mA (work), ≤1mA(sleep)
· Storage temperature: - 40 ℃ ~ 70 ℃
· field protection grade: IP68
· Shell material:ABS
· communications: RS485
The velocity measurement
· Speed range: 0.02~21m/s
· Current radar beam angle:12°×12°
· Speed accuracy: 8.8mm/s
· Resolution: plus or minus 1mm/s;
· Direction discrimination: upstream
·Current radar transmission frequency: 24GHz
