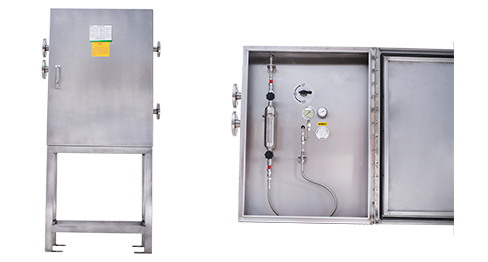

PWMC750-GS-C-1

Application:

This sampler is applied to the sampling of flammable, explosive, toxic and harmful, acid and alkali corrosion of middle and low pressure gas at normal temperature, and can be installed in the process pipeline between the outlet of the pump and the inlet of the pump or between the inlet of the regulating valve and the outlet of the regulating valve. The exhaust gas from the pressure relief is vented/recovered directly to the torch. Sampling containers are sealed stainless steel cylinders. The samples collected are the freshest.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange

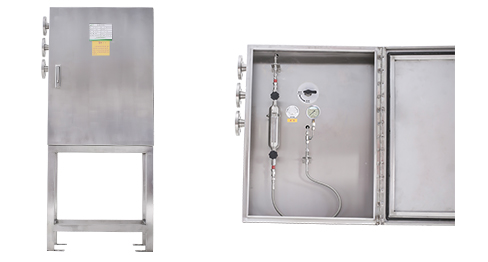

PWMC750-GS-C-2

Application:

This sampler is applied to the sampling of flammable and explosive, toxic and harmful, acid and alkali corrosion of middle and low pressure, middle and high temperature gas which needs cooling. It can be installed in the process pipeline between the outlet of the pump and the inlet of the pump or between the inlet of the regulating valve and the outlet of the regulating valve. The exhaust gas from the pressure relief is vented/recovered directly to the torch. Sampling containers are sealed stainless steel cylinders. The gas is cooled to about 50℃ by cooler first, and the samples collected are not hot and the freshest.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange

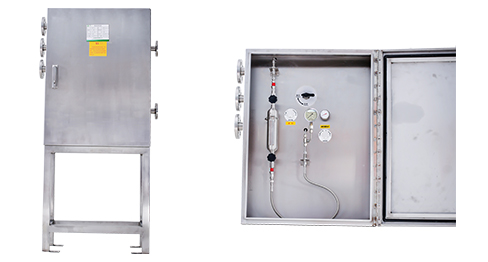

PWMC750-GS-C-3

Application:

This sampler is applied to the sampling of inflammable, explosive, toxic and harmful, acid and alkali corrosion of middle and low pressure gas at normal temperature, and can be installed in the process pipeline between the outlet of the pump and the inlet of the pump or between the inlet of the regulating valve and the outlet of the regulating valve. The exhaust gas from the pressure relief is vented/recovered directly to the torch. Sampling containers are sealed stainless steel cylinders. And if the gas purity requirements are higher, nitrogen can be used to purge the sampling pipeline, and the samples collected are more fresh and accurate.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange

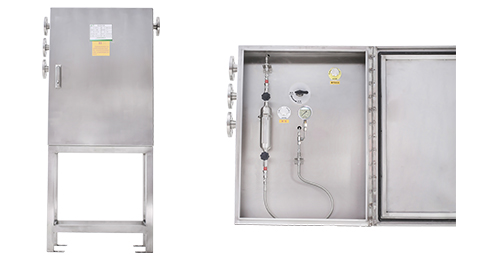

PWMC750-GS-C-4

Application:

This sampler is applied to the sampling of flammable and explosive, toxic and harmful, acid and alkali corrosion of middle and low pressure, middle and high temperature gas that needs to be cooled. It can be installed in the process pipeline between the outlet of the pump and the inlet of the pump or between the inlet of the regulating valve and the outlet of the regulating valve. The exhaust gas from the pressure relief is vented/recovered directly to the torch. Sampling containers are sealed stainless steel cylinders. The gas is cooled to about 50℃ by cooler, and the samples collected are not hot. And if the gas purity requirements are higher, nitrogen can be used to purge the sampling pipeline, and the samples collected are more fresh and accurate.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange

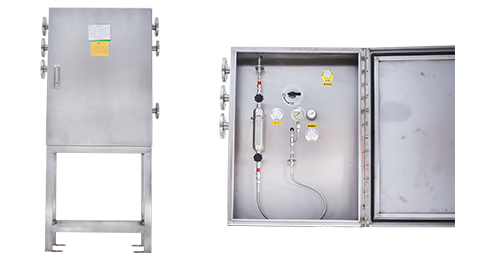

PWMC750-GS-N-1

Application:

This sampler is used for sampling medium and low pressure normal temperature gases which are inflammable, explosive, toxic and harmful and have acid and alkali corrosion. It can be installed on the process pipeline with certain pressure. The gas has no internal circulation, and the exhaust gas of pressure relieving can only be directly vented/recovered to the torch. Sampling containers are sealed stainless steel cylinders. The samples collected are the freshest.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange

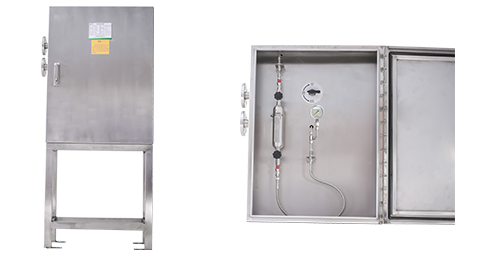

PWMC750-GS-N-2

Application:

This sampler is applied to the sampling of gases that need to be cooled due to inflammable, explosive, toxic and harmful, acid and alkali corrosion in the middle and low pressure and high temperature. It can be installed on the process pipeline with a certain pressure. The gas has no internal circulation, and the exhaust gas of pressure relieving can only be directly vented/recovered to the torch. Sampling containers are sealed stainless steel cylinders. The gas is cooled to about 50℃ by cooler first, and the samples collected are not hot and the freshest.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange

PWMC750-GS-N-3

Application:

This sampler is used for sampling medium and low pressure normal temperature gases which are inflammable, explosive, toxic and harmful and have acid and alkali corrosion. It can be installed on the process pipeline with certain pressure. The gas has no circulation, and the exhaust gas of pressure relief can only be directly vented/recovered to the torch. Sampling containers are sealed stainless steel cylinders. And if the gas purity requirements are higher, nitrogen can be used to purge the sampling pipeline, and the samples collected are more fresh and accurate.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange

PWMC750-GS-N-4

Application:

This sampler is applied to the sampling of gases that need to be cooled due to inflammable, explosive, toxic and harmful, acid and alkali corrosion in the middle and low pressure and high temperature. It can be installed on the process pipeline with a certain pressure, and the waste gas can only be directly vented/recovered to the torch. Sampling containers are sealed stainless steel cylinders. The gas is first cooled to about 50℃ by the cooler, and the samples collected are not hot. If the gas purity is higher, the sampling pipeline can be swept with nitrogen, so that the samples collected are fresher and more accurate.

Process technical index:

Process pressure:(0.05-10.0)Mpa

The environment temperature: 200 ℃)

Material:316L/304

Process connection:flange
